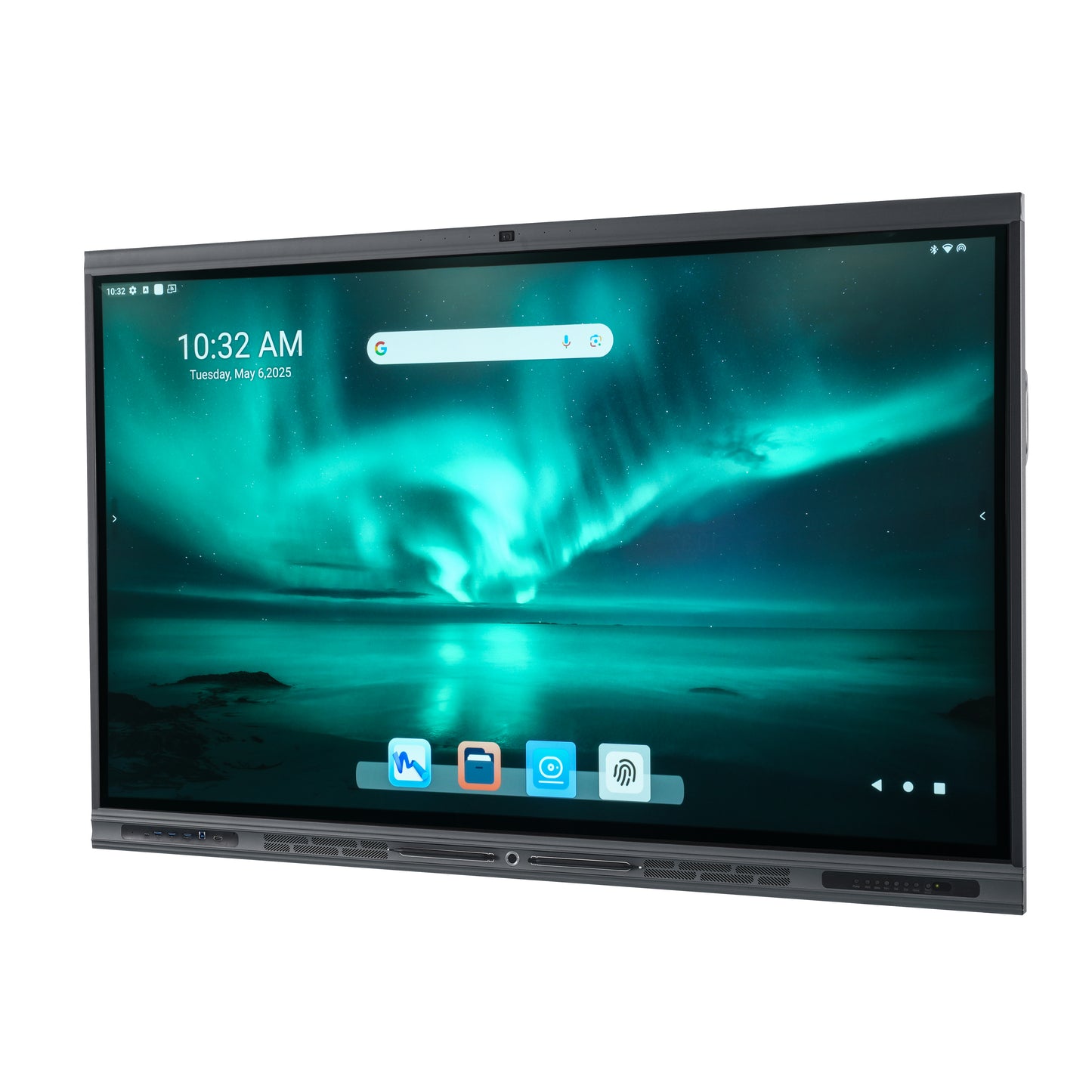

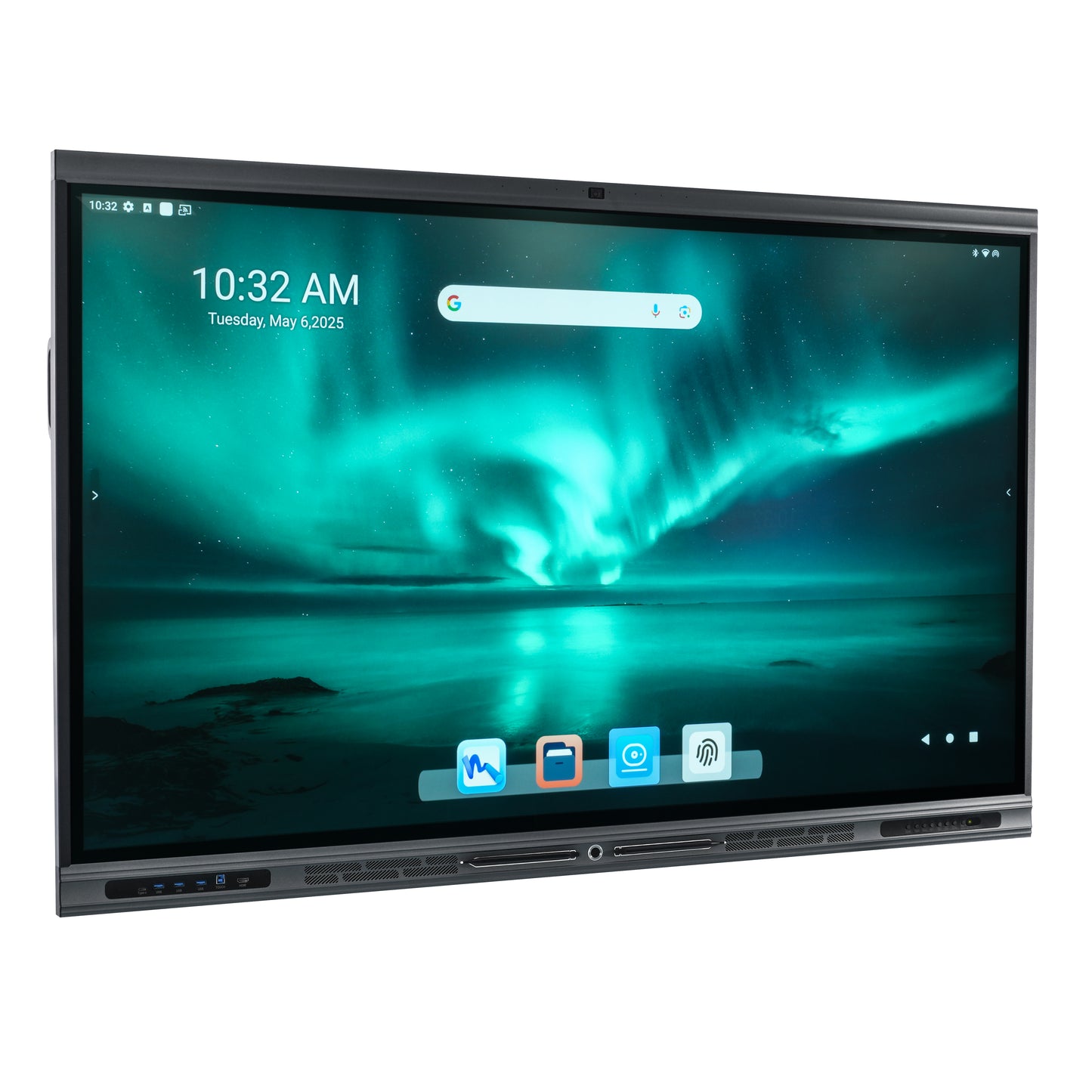

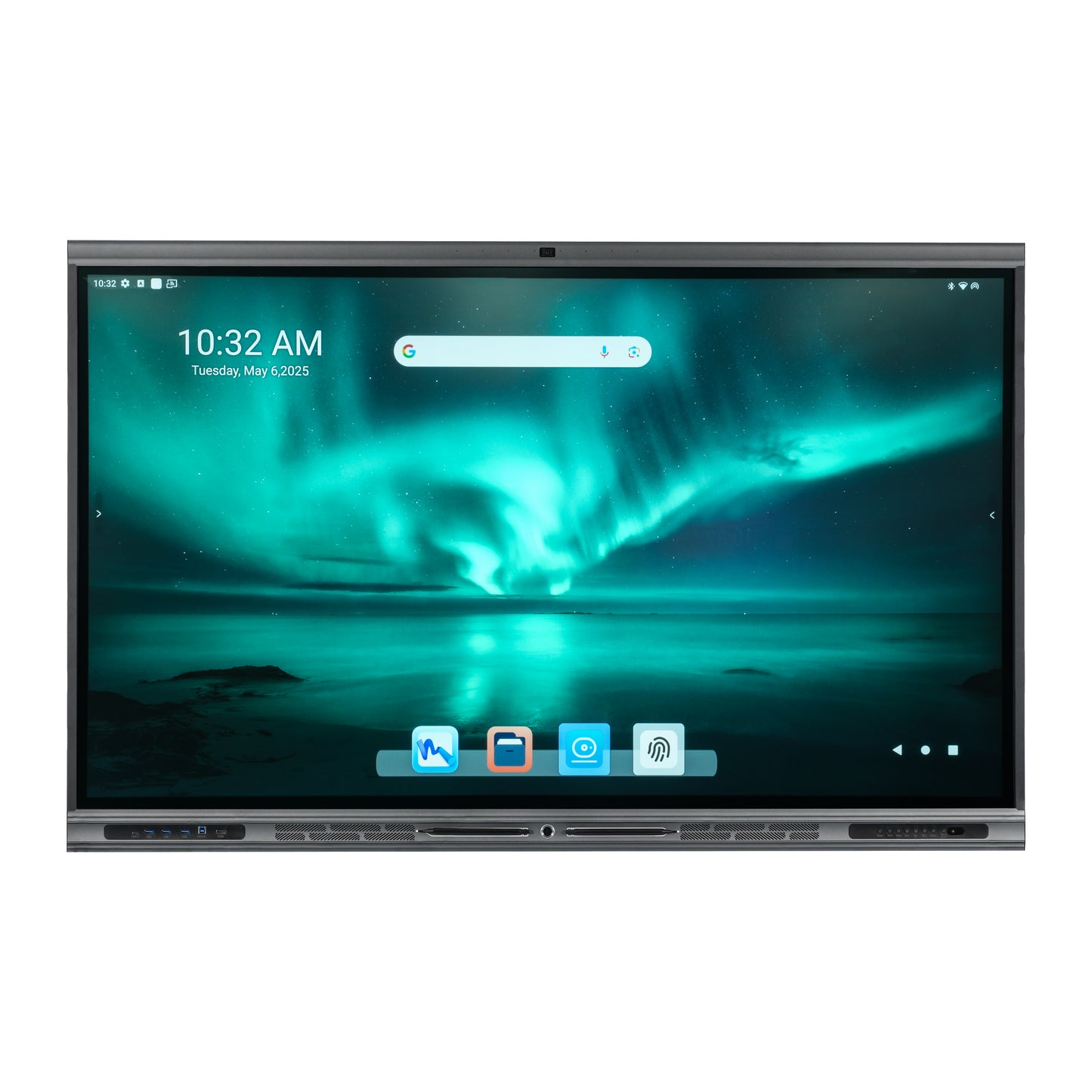

75 Inch White Board for School & Meeting
75 Inch White Board for School & Meeting
4.84 / 5.0
(19) 19 total reviews
Couldn't load pickup availability
75' Product Features
4K UI interface.
Standard Android 13.0 operating system,
Support 20-point infrared touch.
built-in 48MP AI camera and 8 array microphones.
Front USB3.0 and Type-C ports with dual-system auto-following.

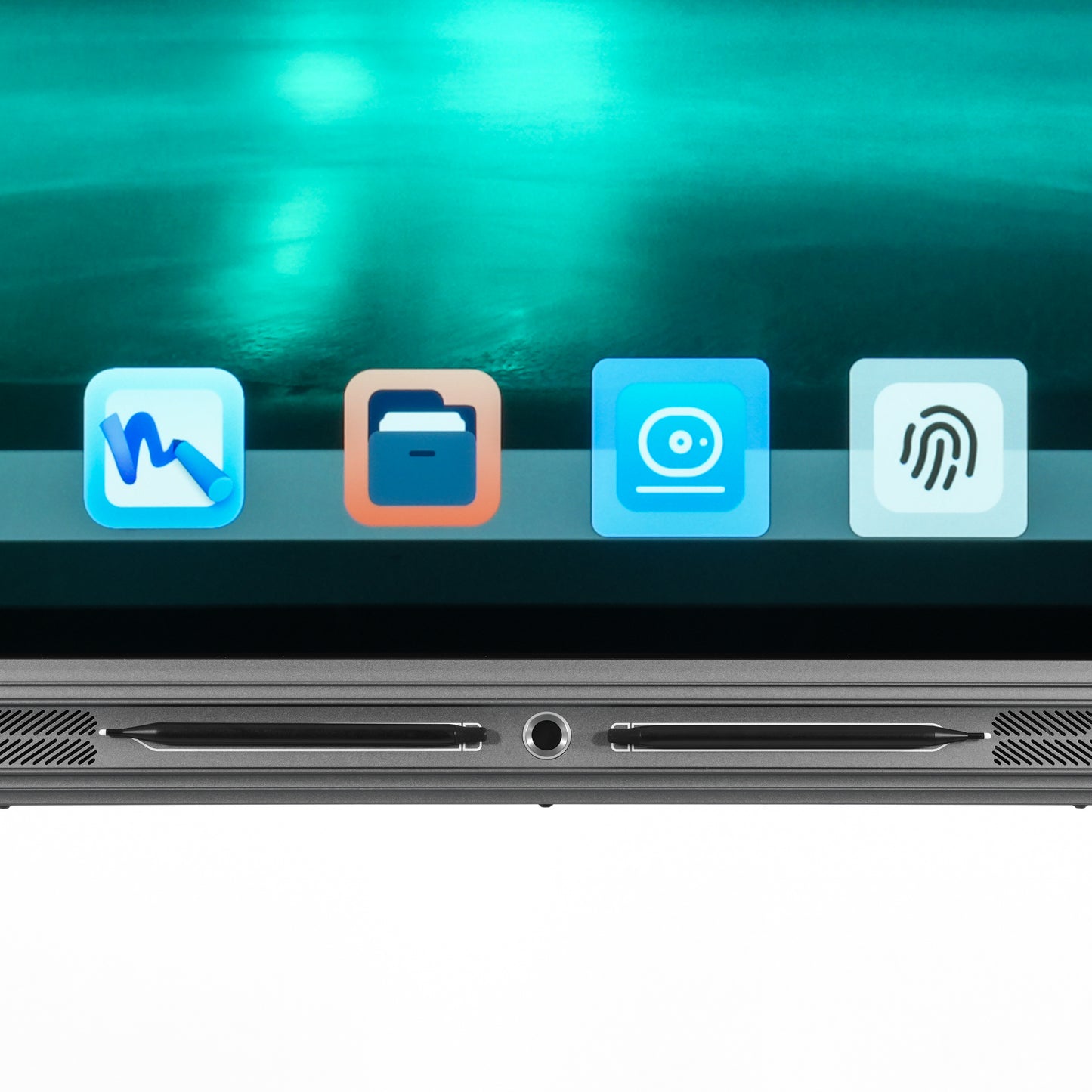

Front 2*15W speakers +1*20W subwoofer and magnetic pen holder.
Full channel annotation with Android whiteboard software.
The distance between the tempered glass and the screen is close to 0-1mm, effectively preventing light reflection.
HJ-TD75 Interactive Touch Panel Technical Specifications
1. Machine Overview
Model: HJ-TD75
Color: Black

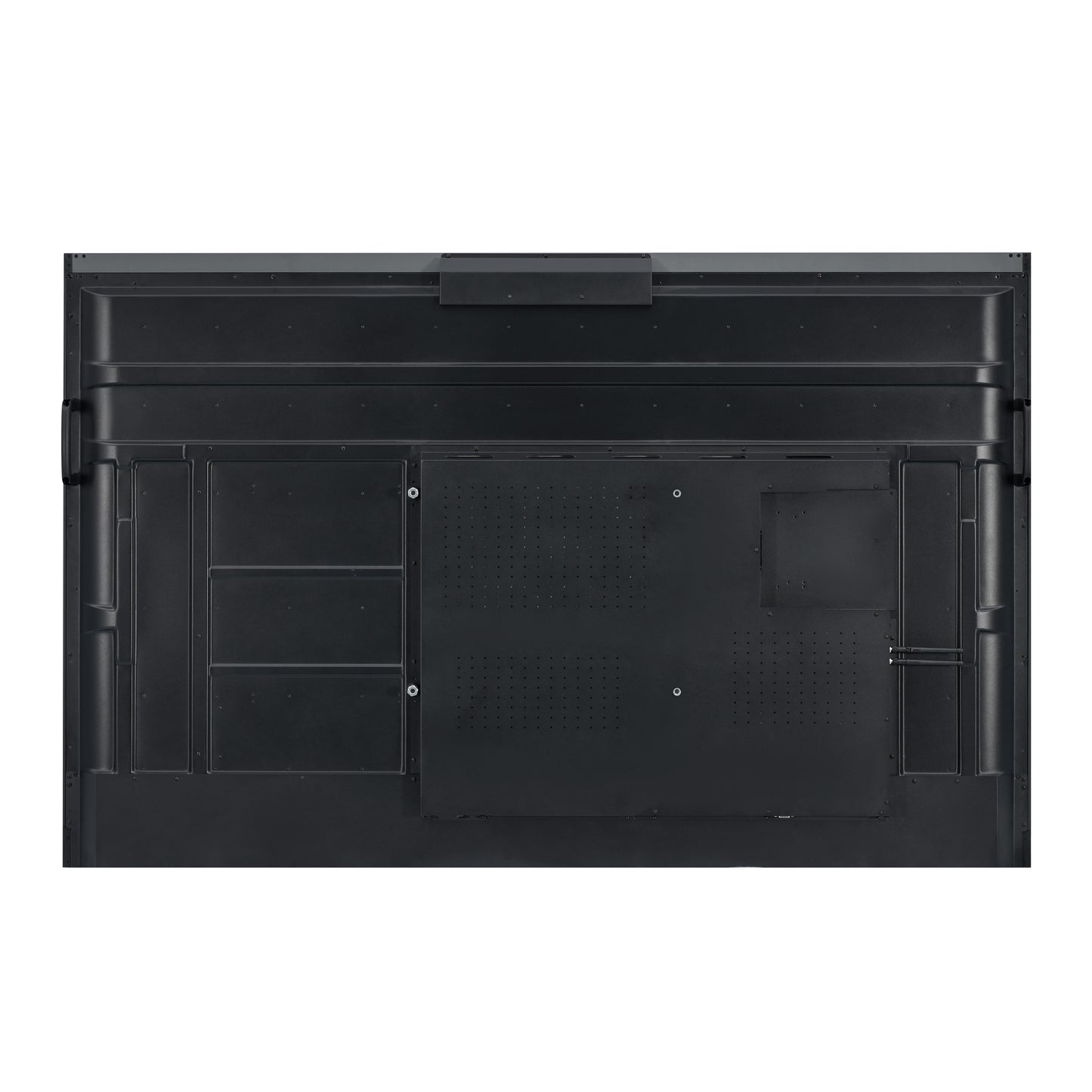

Material: Aluminum Alloy Frame + Aluminum Back Cover
Microphone: 8-array
AI Camera: 48MP
2. Display Specifications
| Parameter | Specification |
|---|---|
| Size | 75 inches |
| Display Area | 1649.5 × 927.6mm |
| Resolution | 4K (3840 × 2160) |
| Brightness | 400 ±50 cd/㎡ |
| Contrast Ratio | 1200:1 / 5000:1 (Dynamic) |
| Response Time | ≤6ms |
| Viewing Angle | 178°(H) / 178°(V) |
| Refresh Rate | 60Hz |
| Color Gamut | 93% NTSC |
| Backlight Type | D-LED |
| Lifespan | 50,000 hours (minimum) |
3. Touch Screen
Technology: Infrared
Touch Points: 20-point multi-touch
Material: 4mm anti-glare tempered glass
Accuracy: ≤1mm
Response Time: ≤5ms
Writing Support: Fingers or passive stylus
OS Compatibility: Android
4. System Configuration
OS: Android 13.0
Processor: Octa-core (4×Cortex-A76 + 4×Cortex-A55)
GPU: ARM Mali-G610 MC4
Memory: 16GB RAM + 256GB ROM

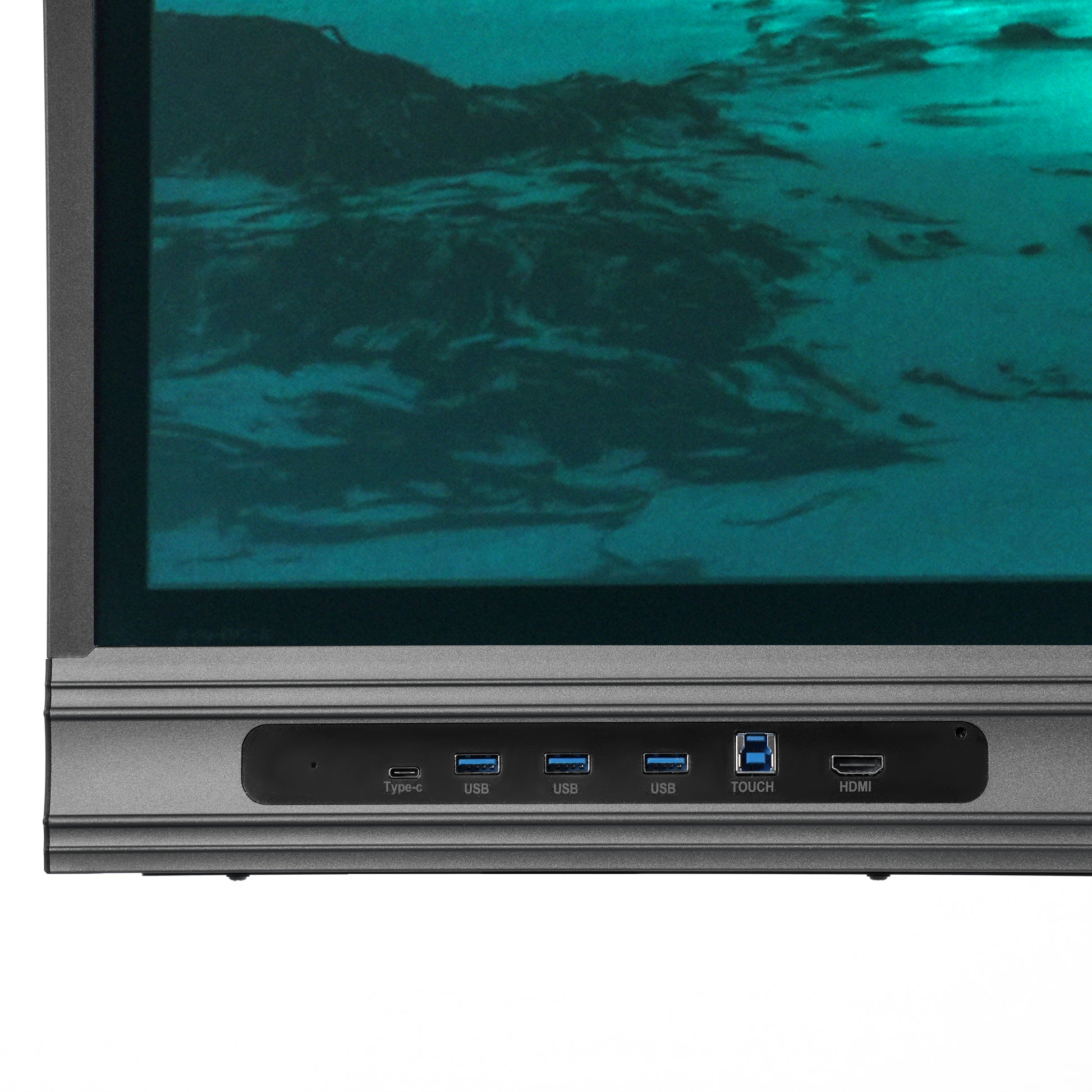

Front Interfaces:
1×Touch USB 3.0
1×HDMI IN
1×Type-C
3×USB 3.0

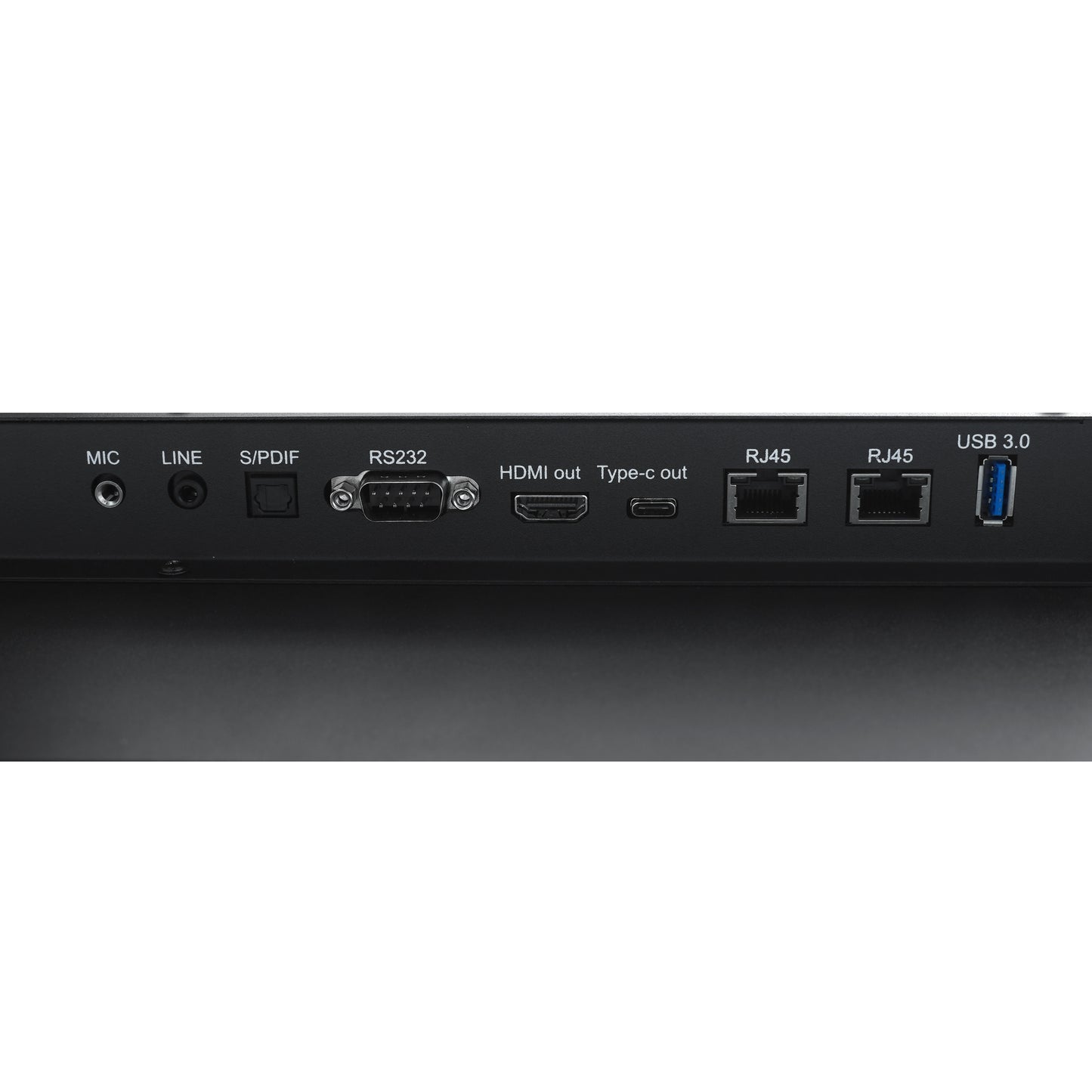

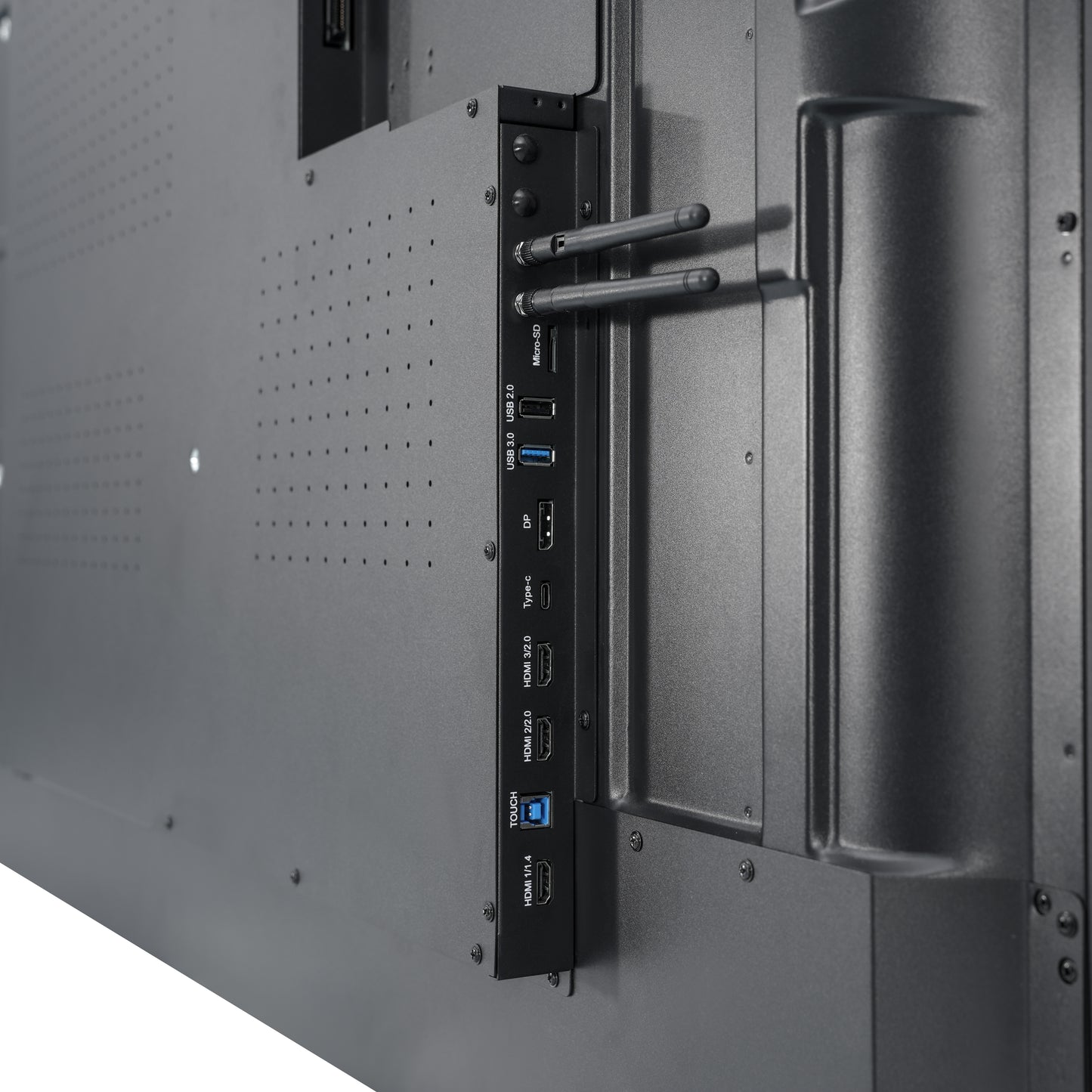

Side Interfaces:
3×HDMI IN | 2×Type-C IN | 1×DP IN | 1×VGA IN
2×RJ45 | 1×RS232 | 3×TOUCH USB 3.0
Audio: MIC IN, Earphone OUT, SPDIF OUT
Wireless: Wi-Fi 5.0/6.0 (2.4G/5G dual-band)
5. Power & Audio
Input: AC 100-240V, 50/60Hz
Power Consumption: 360W (Standby ≤0.5W)
Speakers: 2×15W front + Optional 20W subwoofer

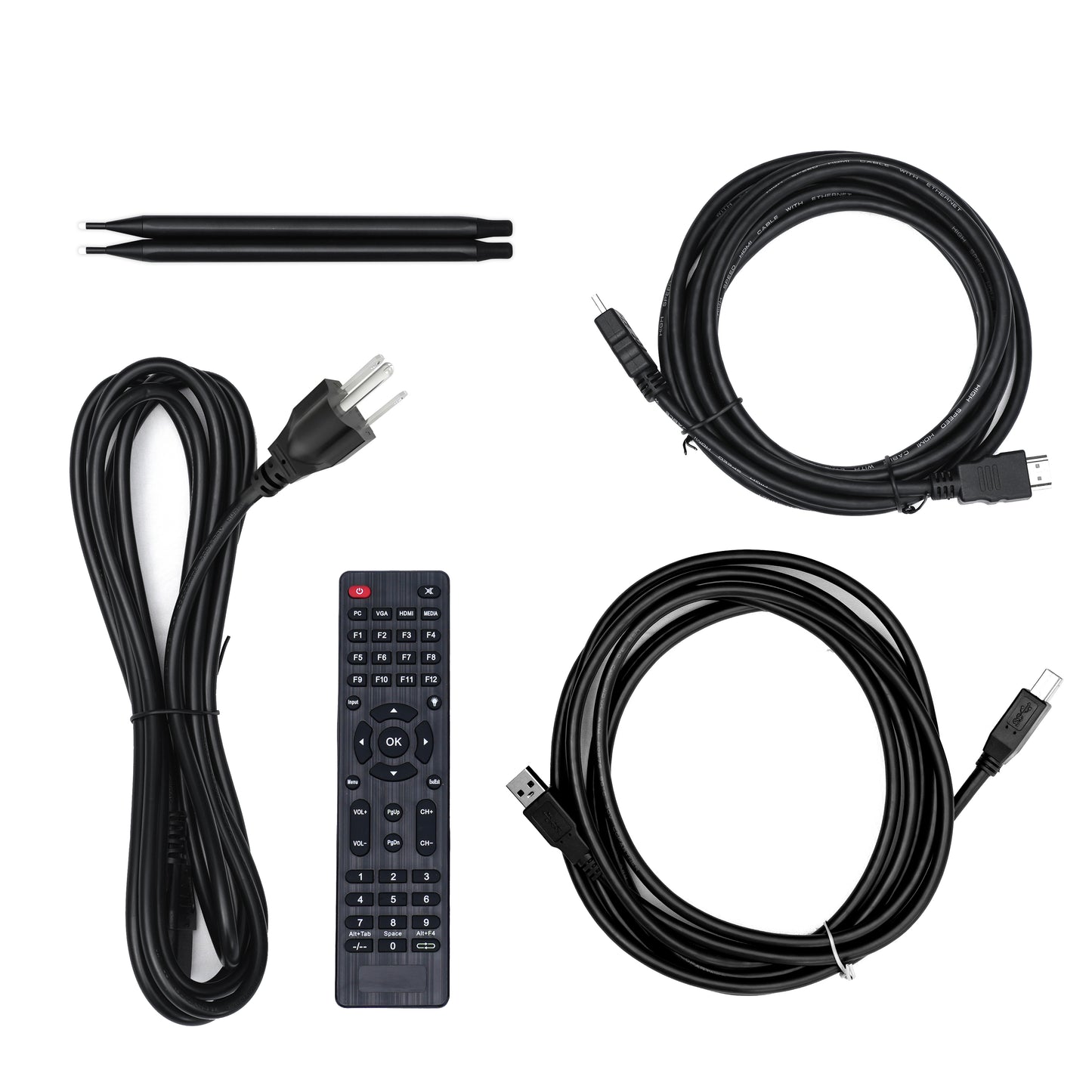

6. Accessories
Remote control ×1
Writing pens ×2
Power/HDMI/USB cables ×1 each

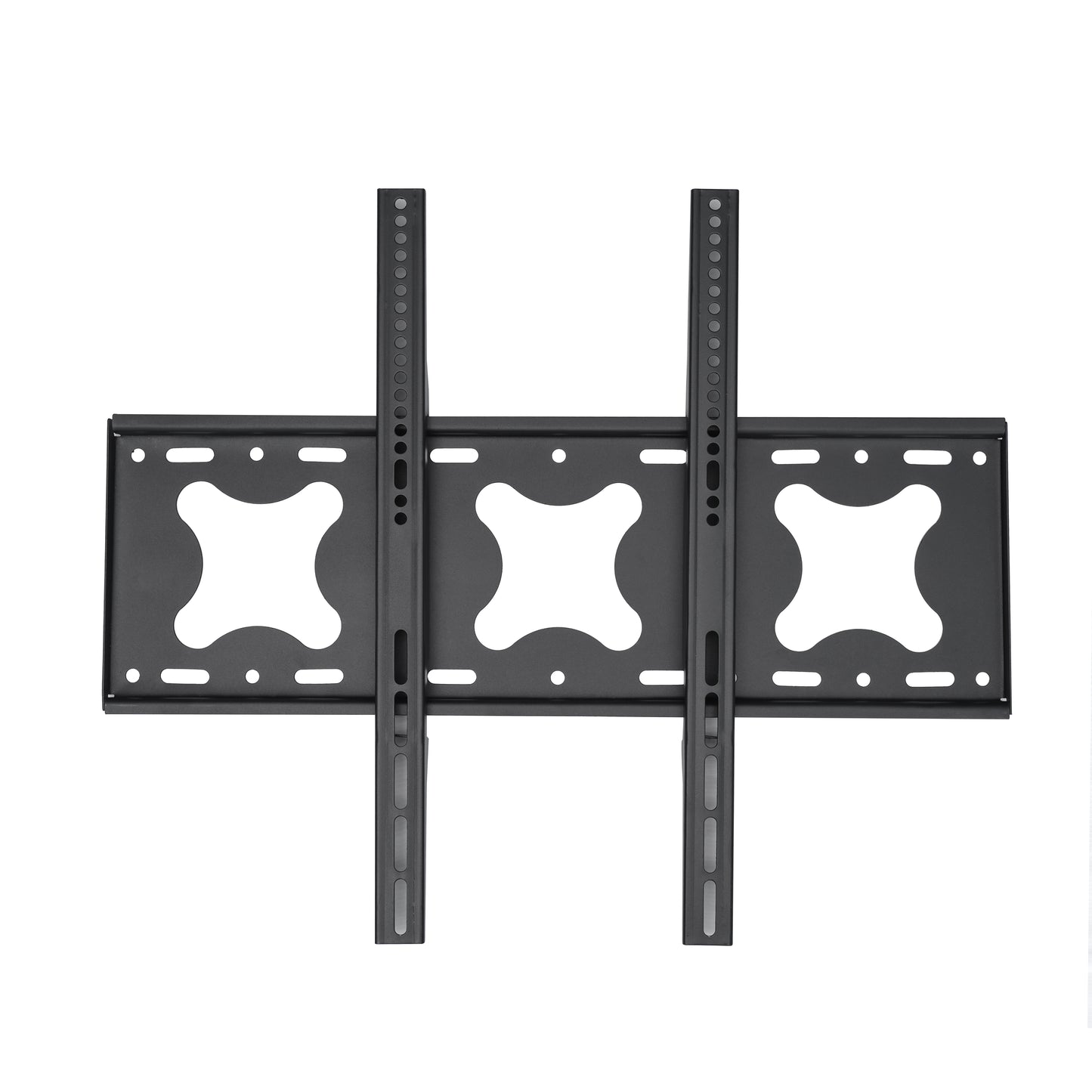

Wall bracket ×1
7. Physical Dimensions
Product Size: 1713.5 × 1043.6 × 88mm
Net Weight: 53kg | Shipping Weight: 63kg
Packing Size: 1850 × 200 × 1120mm (carton)

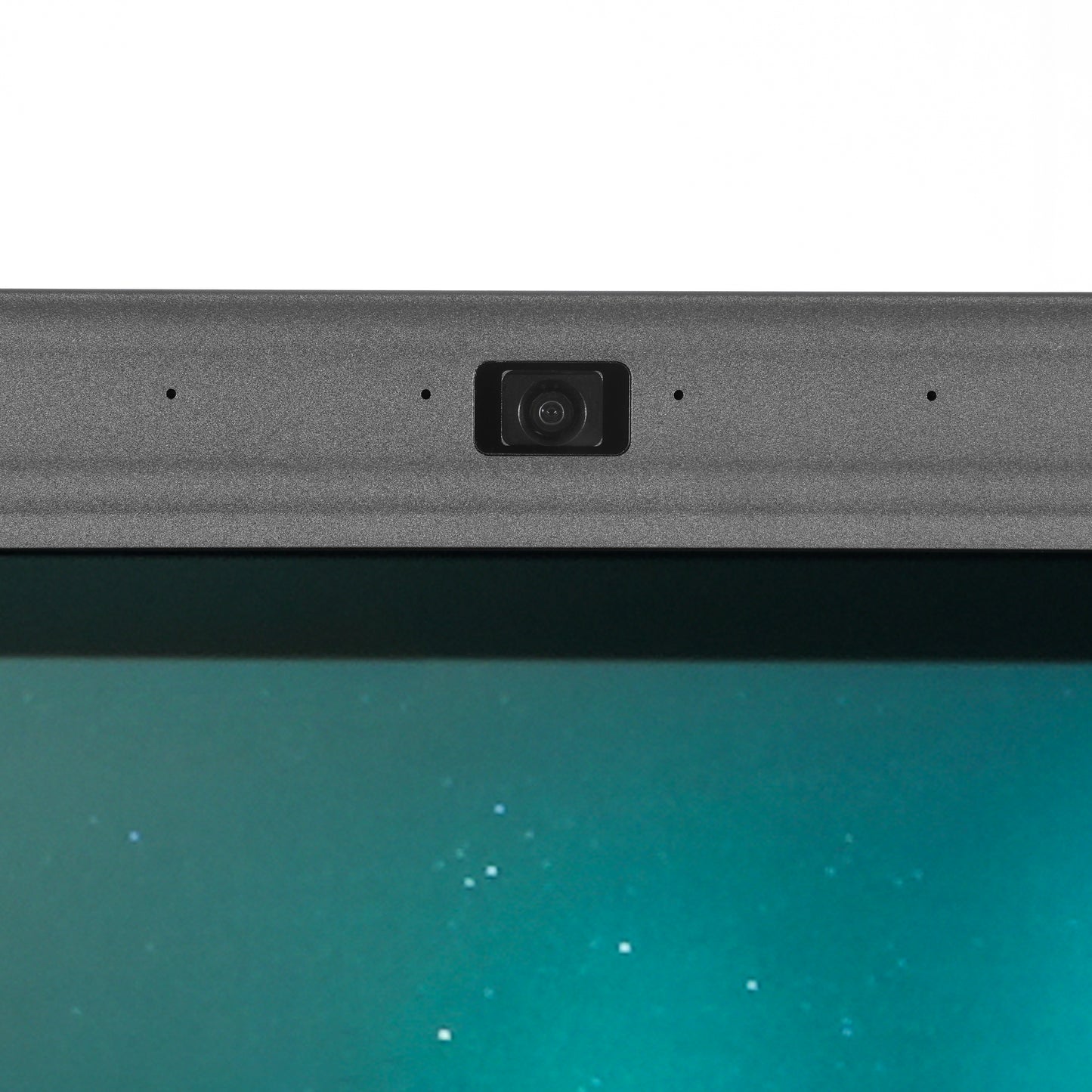

8. 48MP AI Camera Details
Video Formats: MJPG/H.264/H.265
Resolutions: Up to 4000×3000@15fps, 4K@30fps
If you want to customize other specifications, please consult our sales.
